AdvanSol

Panel-level electronics

AdvanSol rapid shutdown, monitoring and optimisation

AdvanSol devices sit behind each solar panel and work with the FOX ESS inverter. Choose shutdown only, shutdown with panel-by-panel monitoring, or shutdown, monitoring and optimisation in one. A control box manages each string, and the Acloud EOS app adds monitoring and remote shutdown.

Become a partner Download the AdvanSol solution sheet (PDF, 8.6 MB)

Solution R: rapid shutdown

Module-level shutdown · APT-MC-R-T2

Shuts each panel down at module level when the system is switched off
One unit serves two modules
Works with the DCON-S control box
Optional online remote shutdown through the Acloud EOS app

Specifications

Number of modules connected: 2
Rated input power: 800W*2
Input voltage range: 10V-80V*2
Max. output voltage: 160V
Output shutdown voltage: <1.5V
Shutdown response time: 30s
Protection rating: IP68
Max. system voltage: 1500V
Safety: UL1741 /UL3741 /CSA C22.2 No.107.1/CSA C22.2 No.330

Full specifications: Solution R sheet (PDF, 7.3 MB).

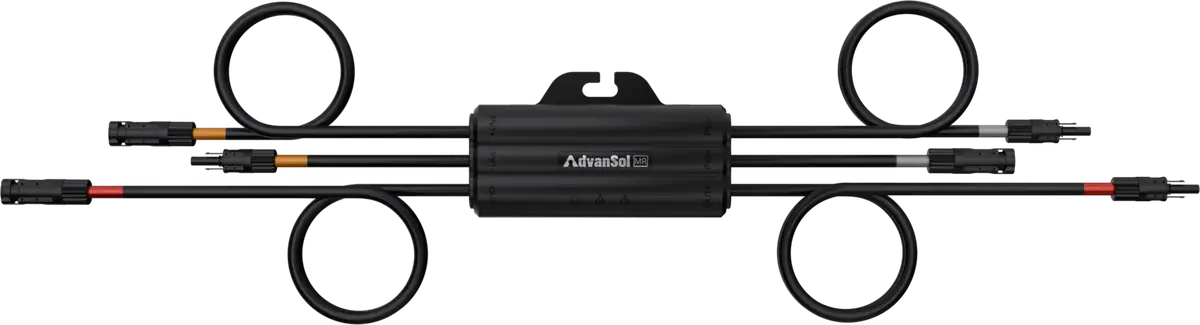

Solution MR: shutdown and monitoring

Shutdown and monitoring · APT-MC-MR-T2

Rapid shutdown plus panel-by-panel monitoring
One unit serves two modules
Works with the DCON-4G and DCON-WIFI control boxes
Spot a weak panel from the Acloud EOS app

Specifications

Number of modules connected: 2
Rated input power: 800W*2
Input voltage range: 12V-80V*2
Max. output voltage: 160V
Output shutdown voltage: <1.5V
Shutdown response time: 30s
Protection rating: IP68
Max. system voltage: 1500V
Safety: UL1741 /UL3741 /CSA C22.2 No.107.1/CSA C22.2 No.330

Full specifications: Solution MR sheet (PDF, 5.8 MB).

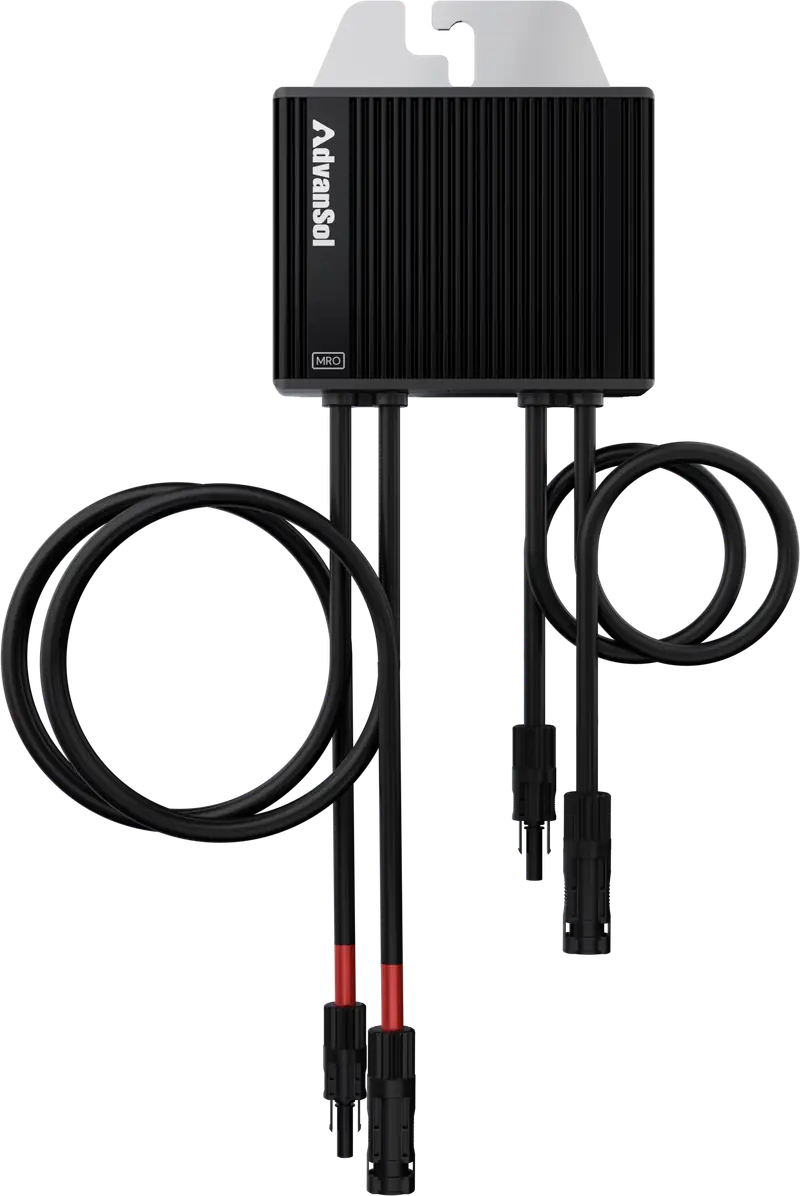

Solution MRO: shutdown, monitoring and optimisation

Shutdown, monitoring and optimisation · APT-MC-MRO and APT-MC-MRO-120

Rapid shutdown, monitoring and panel-level optimisation in one unit
Two versions: one module or two modules per unit
Works with the DCON-4G and DCON-WIFI control boxes
Helps on roofs with shade or panels facing different directions

Specifications

Number of modules connected: APT-MC-MRO: 1; APT-MC-MRO-120: 2
Rated input power: APT-MC-MRO: 800W; APT-MC-MRO-120: 1600W
Max. input voltage: APT-MC-MRO: 80V; APT-MC-MRO-120: 120V
MPPT operating range: APT-MC-MRO: 12V-80V; APT-MC-MRO-120: 15V-105V
Max. output voltage: 80V
Output shutdown voltage: APT-MC-MRO: <1V; APT-MC-MRO-120: <2V
Shutdown response time: 30s
Protection rating: IP68
Max. system voltage: 1000V/1500V

Full specifications: Solution MRO sheet (PDF, 8.6 MB).

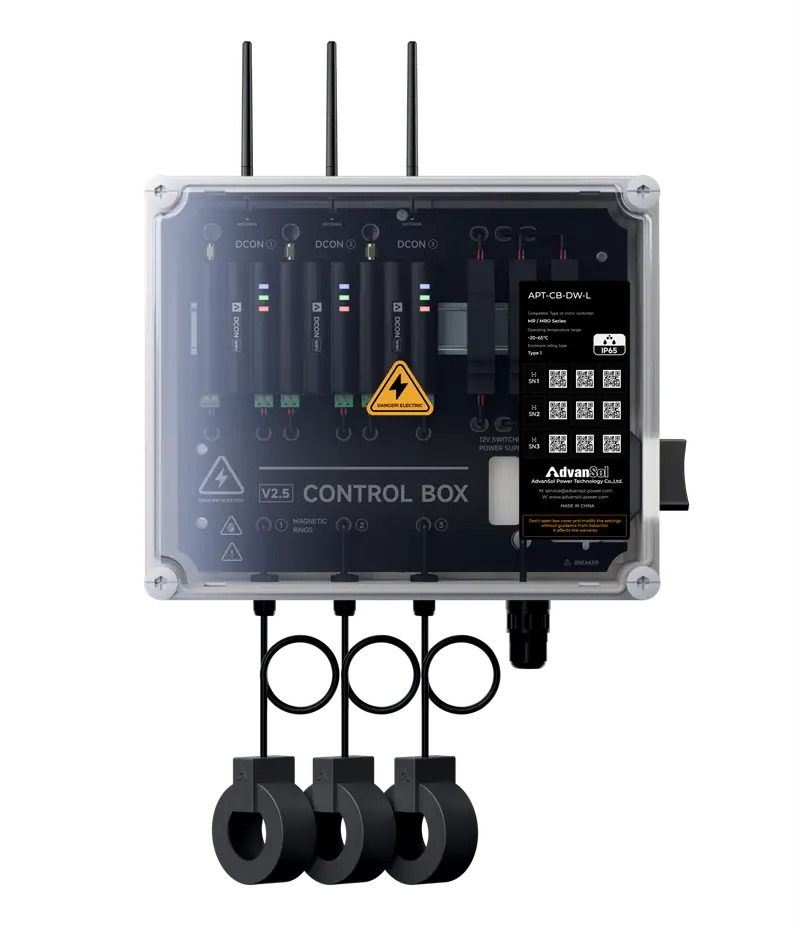

Control boxes

Data controllers · DCON-S, DCON-4G, DCON-WIFI

DCON-S for the R series, DCON-4G and DCON-WIFI for the MR and MRO series
Connects the panel devices to the Acloud EOS app
Optional emergency button kit for one-press shutdown

Specifications

Compatible micro controller: DCON-S: R series; DCON-4G and DCON-WIFI: MR/MRO series
Communication mode with Acloud: DCON-S: WIFI; DCON-4G: 4G; DCON-WIFI: WIFI
Power supply: 100-240VAC
Max. number of strings supported: DCON-S: 8 strings/mag ring (Rec.); DCON-4G and DCON-WIFI: 6 strings/mag ring (Rec.)
Working ambient temperature: -20°C~65°C
Protection rating: IP65

Full specifications: AdvanSol datasheet, available on request.

Installing AdvanSol?

Partners buy direct from the official distributor in Malaysia.

Become a partner Find an installer
