Roof mounting

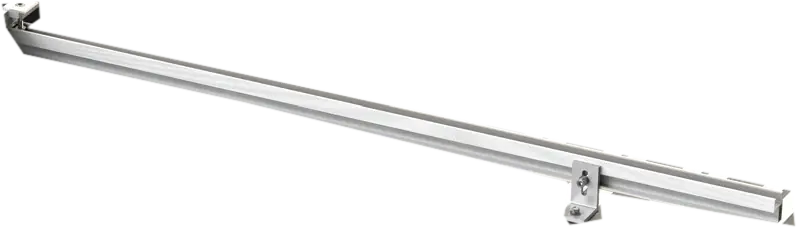

• Rail and railless (mini rail) options for metal sheet roofs
• Various roof clamps for different metal roof applications
• Light system that is quick and easy to install
• The mini rail option fits more panels on the roof

Full specifications: catalogue pages 7 and 8.

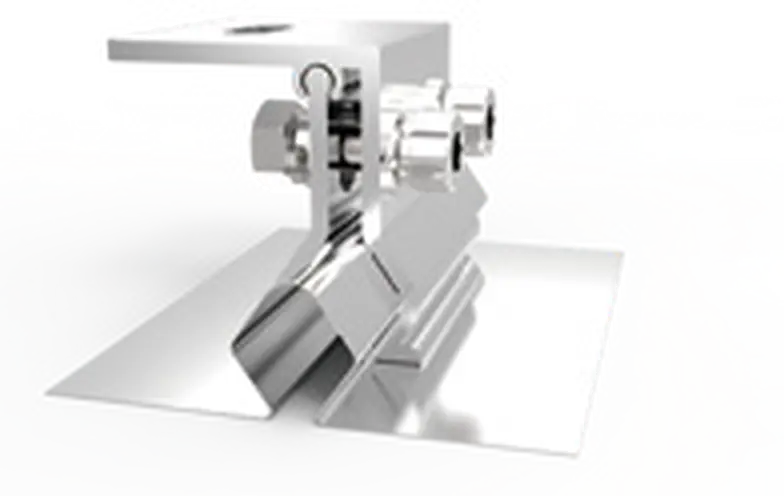

• Clamps grip the seam, so nothing penetrates the roof
• Highly pre-assembled parts for quick installation
• Clamp styles to suit different seam shapes

Specifications

Opening dimension (RF-0266, RF-0016, RF-0043)

18.5mm

Opening dimension (RF-0036)

12.63mm

Round seam dimension (RF-008)

17.8mm

Full specifications: catalogue page 9.

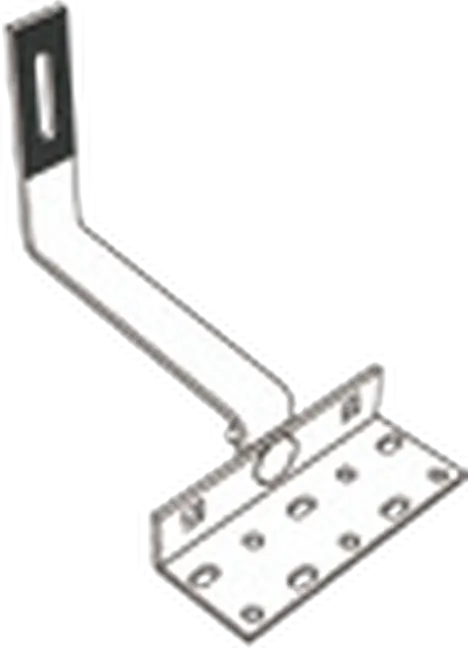

• Hooks fixed to the roof structure under the tiles
• Suits both commercial and residential roofs
• Anodised aluminium and stainless steel parts
• Fewer parts, so installation is quicker

Specifications

Material

Aluminum AL6005-T5, Stainless Steel SUS304

Standard

AS/NZS 1170, JISC8955-2017

Warranty

10 Years Warranty, 25 Years Service Life

Wind speed

<80m/s

Load

Up to 1.4 kN/m²

Applicable module

Frame or Frameless

Full specifications: catalogue page 10.

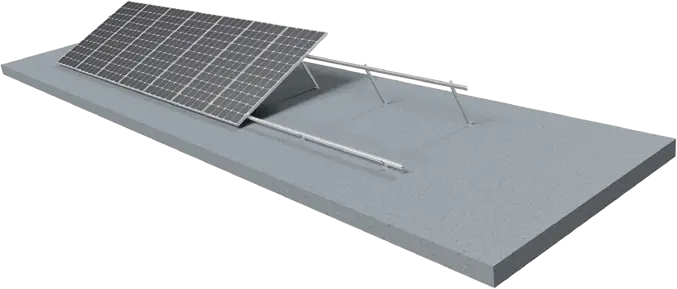

• Set the angle within a chosen range to get more from the panels
• Aluminium material with strong corrosion resistance
• Light parts that are easy to carry up and fit
• Clamps attach straight to the roof

Specifications

Tilt angle

10~15, 15~30° and 30~60°

Material

Aluminum AL6005-T5, Stainless Steel SUS304

Standard

AS/NZS 1170, JISC8955-2017

Warranty

10 Years Warranty, 25 Years Service Life

Wind speed

<80m/s

Load

Up to 1.4 kN/m²

Applicable module

Frame or Frameless

Full specifications: catalogue page 11.

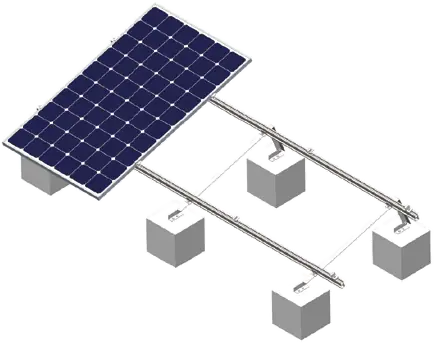

• No drilling, so the roof is not damaged
• Optional windshield protects the whole array
• East-west layout on flat roofs for greater energy production
• Largely pre-assembled to save time on site
• Guardrails, walkways and skylight covers for safe roof access are available on request.

Specifications

Material

Aluminum AL6005-T5, Stainless Steel SUS304

Standard

AS/NZS 1170, JISC8955-2017

Warranty

10 Years Warranty, 25 Years Service Life

Wind speed

<80m/s

Load

Up to 1.4 kN/m²

Applicable module

Frame or Frameless

Full specifications: catalogue page 12.
