Ground and carport mounting

KSENG systems for open ground and car parks

KSENG ground and carport structures for solar farms, commercial land and car parks: aluminium and steel frames, pile and ground-screw foundations, and carports for one to four cars.

Become a partner Download the KSENG catalogue (PDF, 6.7 MB)

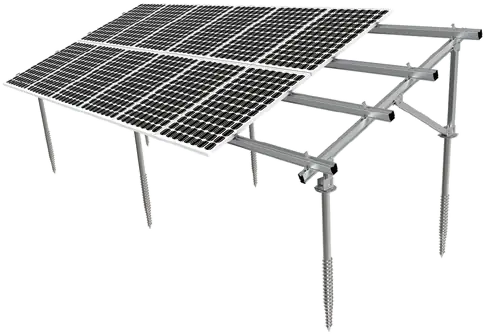

Aluminium and steel ground mounting

Open ground

Aluminium frame with strong corrosion resistance and a long service life
Steel frame as a lower-cost option for any soil type
Ground screw or concrete foundations
Flexible for uneven terrain such as slopes

Specifications

Material (aluminium): Aluminum AL6005-T5, Stainless Steel SUS 304
Material (steel): Zn-Al-Mg coated steel or Q235B carbon steel
Standard: AS/NZS 1170, JISC8955-2017
Warranty: 10 Years Warranty, 25 Years Service Life
Foundation: Screw or Concrete foundation

Full specifications: catalogue pages 16 and 17.

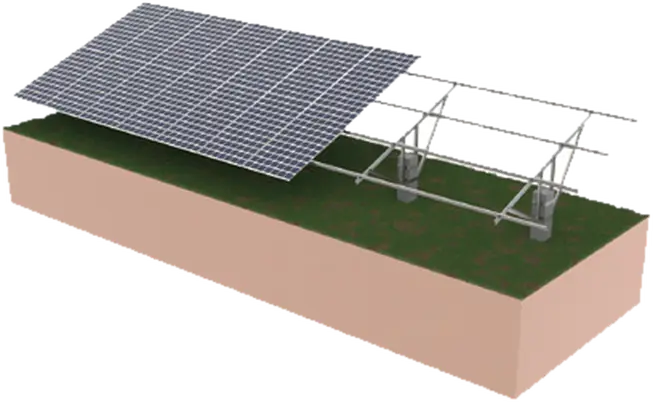

Pile ground mounting

Flat, uneven and sloping ground

Suits flat ground, uneven ground and slopes
Corrosion-resistant aluminium structure on a galvanised steel post
Largely pre-assembled to save time and labour on site
Single pole with bracings or with hoops

Specifications

Material: HDG steel/ZAM steel
Standard: AS/NZS 1170
Warranty: 10 Years Warranty, 25 Years Service Life
Foundation: Pile or Concrete foundation
Terrain tilt angle: 0-60°

Full specifications: catalogue page 18.

Ground screws

Foundations

Hot-dip galvanised steel screws for ground mounting
Versions for ordinary ground, soft or sandy ground, and uneven ground
Adjustable and large-blade options

Specifications

Material: Hot Dip Galvanized Q235B
Outer diameter: 76mm, 89mm, 102mm
Thickness: 3-4mm
Length: 1000-3600mm
Flange diameter: 200mm&220mm

Full specifications: catalogue page 15.

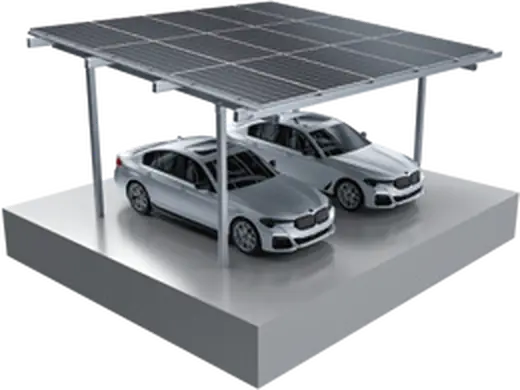

Solar carport

Car parks · 1 to 4 cars

Makes use of parking space while generating electricity
Modular layouts for one, two, three or four cars
Waterproof design for framed modules
Precast concrete, bored pier or ground screw foundations
Trackers, agricultural and BIPV structures are available on request.

Specifications

Material: Aluminum AL6005-T5, Stainless Steel SUS 304, HDG steel/ZAM steel
Standard: AS/NZS 1170, JISC8955-2017
Warranty: 10 Years Warranty, 25 Years Service Life
Foundation: Screw or Concrete foundation

Full specifications: catalogue page 19.
