Hybrid inverters

Single and three phase, 0.8 to 125 kW

Hybrid and AC inverters that keep a solar system working day and night, from single-phase units to commercial three-phase models. Monitoring runs through FoxCloud V2.0.

Become a partnerDownload the brochure (PDF, 6.5 MB)

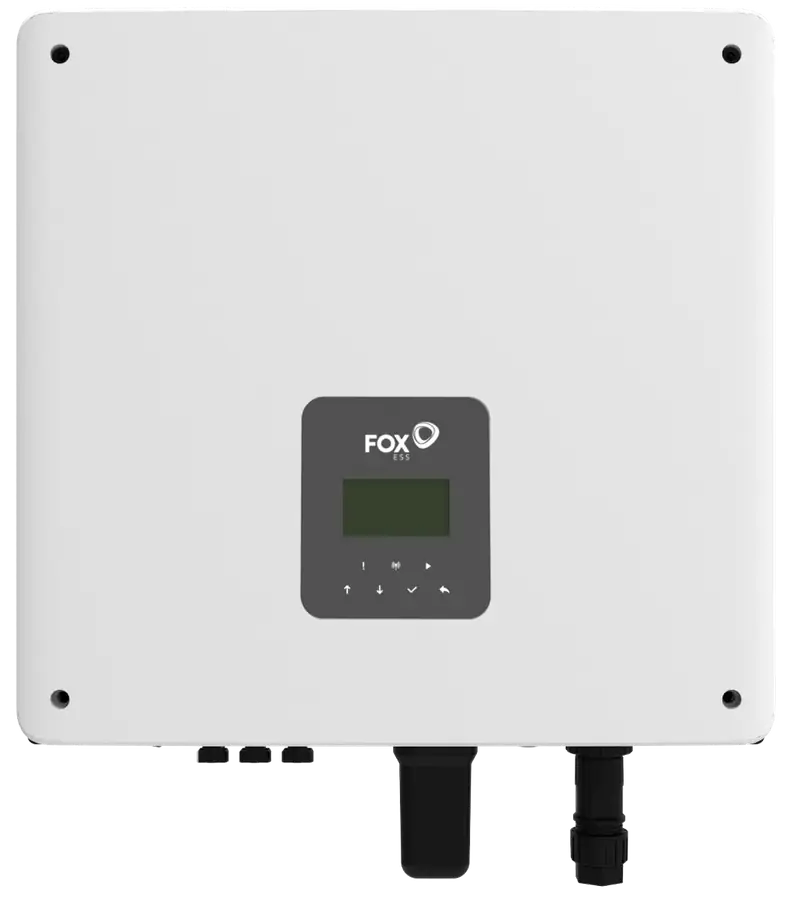

FOX ESS H1/AC1 series

H1/AC1 series

Single phase · 3 to 6 kW

  • Hybrid and AC versions, compatible with FOX ESS high-voltage batteries for maximum round-trip efficiency
  • Flexible configuration with plug and play set-up and built-in fuse protection
  • IP65 rated and suitable for outdoor installation
  • Remote monitoring by smartphone app or web portal, with FoxCloud V2.0

Specifications

Battery voltage [V]
80 ~ 480
MPPT operating voltage range [V]
80 ~ 550
Max. charge/discharge current [A]
40
EPS switch time [ms]
<10
Parallel operation [PCS]
10
Ingress protection
IP65

Full specifications: brochure page 13.

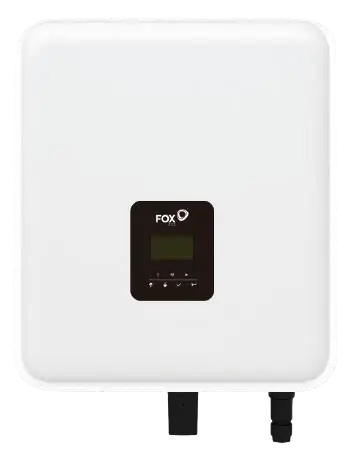

FOX ESS KH/KA series

KH/KA series

Single phase · 7 to 10.5 kW

  • Hybrid and AC versions, compatible with FOX ESS high-voltage batteries for maximum round-trip efficiency
  • Flexible configuration with plug and play set-up and built-in fuse protection
  • IP65 rated and suitable for outdoor installation
  • Remote monitoring by smartphone app or web portal, with FoxCloud V2.0

Specifications

Max. efficiency [%]
97.80
Battery voltage range [V]
85 ~ 480
MPPT voltage range [V]
80 ~ 500
Max. charge current [A]
50
EPS switch time [ms]
<6
Ingress protection
IP65

Full specifications: brochure page 15.

S22 series

Single phase · 0.8 kW

  • Fully integrated, all-in-one residential micro storage system
  • Sleek, minimalist design for effortless one-step installation
  • IP65 rated and suitable for outdoor installation
  • EPS function, expandable capacity and 90% depth of discharge

Specifications

Rated power [W]
800
Battery nominal energy [kWh]
2.11
Battery cycle life
>6000
Max. PV input power, S22-M-H [W]
2600
Ingress protection
IP65

Full specifications: brochure page 17.

P100 series

Single phase · 5 to 10 kW + 10 kWh

  • Fully integrated storage system with inverter and charger, designed for one-step installation
  • Double off-grid backup capability, with 200% overload for 10 seconds
  • Supports 4ms parallel off-grid switching
  • IP66 rated, with EPS function and 95% depth of discharge

Specifications

Battery energy [kWh]
10.24
Depth of discharge [%]
95
Cycle life
6000
Max. conversion efficiency [%]
97.60
EPS switch time [ms]
<4
Ingress protection
IP66

Full specifications: brochure page 19.

Stackable AIO single phase

Single phase · 3.7 to 12 kW + 14.04 to 49.14 kWh

  • Built-in 63A bypass for full house backup, with a 4ms seamless switch
  • Up to 200% PV input with 4 MPPTs, 20A per string
  • Designed for single-person installation, with plug and play set-up
  • IP66 rated, with intelligent AFCI function and type II DC/AC surge protection

Specifications

Max. static MPPT efficiency [%]
99.90
MPPT voltage range [V]
80 ~ 550
Battery voltage [V]
80 ~ 500
Depth of discharge [%]
90
Switch time [ms]
<4
Ingress protection
IP66

Full specifications: brochure page 21.

Stackable AIO three phase

Three phase · 5 to 15 kW + 14.04 to 84.24 kWh

  • Built-in 63A bypass for full house backup
  • 3 MPPTs with 20A per string, PV minimum voltage of 120V and minimum battery voltage of 80V
  • Designed for single-person installation, with plug and play set-up
  • IP66 rated, with intelligent AFCI function and type II DC/AC surge protection

Specifications

MPPT efficiency [%]
99.90
MPPT voltage range [V]
120 ~ 950
Battery voltage [V]
80 ~ 800
Max. charge/discharge current [A]
50
Switch time, single device [ms]
<20
Ingress protection
IP66

Full specifications: brochure page 25.

FOX ESS P3-S series

P3-S series

Three phase · 5 to 15 kW

  • Compatible with FOX ESS high-voltage batteries for maximum round-trip efficiency
  • Flexible configuration with plug and play set-up and built-in fuse protection
  • IP65 rated and suitable for outdoor installation
  • Remote monitoring by smartphone app or web portal, with FoxCloud V2.0

Specifications

MPPT efficiency [%]
99.90
MPPT voltage range [V]
120 ~ 950
Battery voltage [V]
100 ~ 800
Max. charge/discharge current [A]
50.0
EPS switch time [ms]
<10
Ingress protection
IP65 (For outdoor use)

Full specifications: brochure page 29.

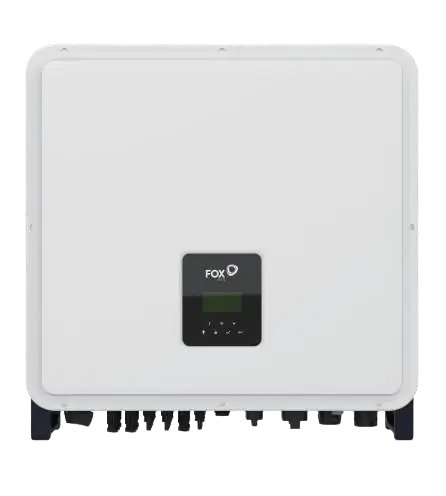

FOX ESS P3 PRO series

P3 PRO series

Three phase · 15 to 30 kW

  • Compatible with FOX ESS high-voltage batteries for maximum round-trip efficiency
  • Flexible configuration with plug and play set-up and built-in fuse protection
  • IP65 rated and suitable for outdoor installation
  • Remote monitoring by smartphone app or web portal, with FoxCloud V2.0

Specifications

MPPT efficiency [%]
99.90
MPPT voltage range [V]
150 ~ 850
Battery voltage [V]
150 ~ 800
Number of battery inputs
2
Max. charge/discharge current [A]
50+50
Ingress protection
IP65

Full specifications: brochure page 31.

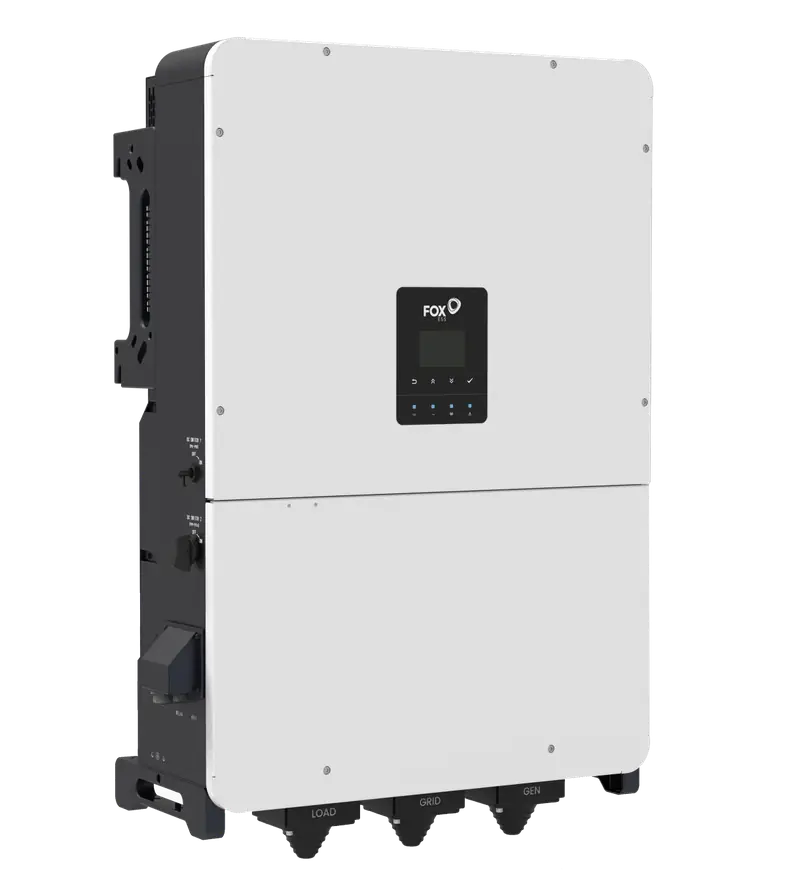

FOX ESS P3 PLUS series

P3 PLUS series

Three phase · 50 to 125 kW

  • More than 6 hours of backup power available
  • EPS function with a switch time of less than 10ms
  • Supports 100% unbalanced three-phase output
  • Colour LCD screen, aimed at commercial applications

Specifications

Max. efficiency [%]
98.5
MPPT voltage range [V]
180 ~ 850
Battery voltage range [V]
180 ~ 950
Max. charging/discharging current [A]
240 (80+80+80)
EPS switching time [ms]
<10
Ingress protection (IP) rating
IP65

Full specifications: brochure page 33.
